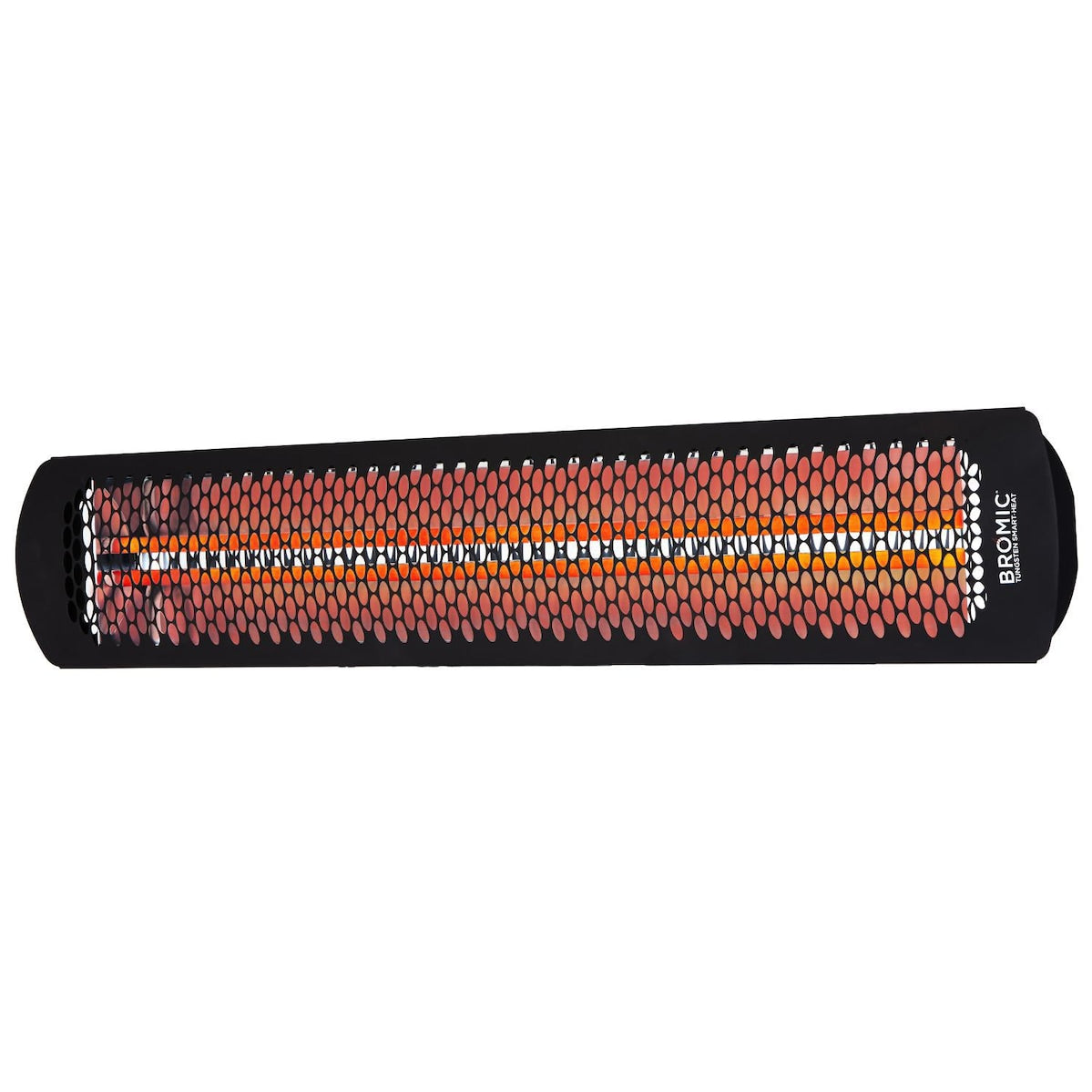

Bromic Tungsten Smart-Heat 56-Inch 6000W Dual Element Electric Heater
Bromic Tungsten Smart-Heat 56-Inch 6000W Dual Element Electric Heater
Regular price
$1,214.00 USD
Regular price
Sale price
$1,214.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Share
No reviews
Description
The Bromic Tungsten Smart-Heat 56-Inch 6000W Dual Element Electric Heater is the most powerful model in the Tungsten Electric range, built for larger spaces and colder climates. It warms outdoor areas of up to 160 square feet, and its two heating elements can be controlled separately so you can tailor heat output. Available in black or white in 208V, 240V and 277V.
Efficient Infrared Heat

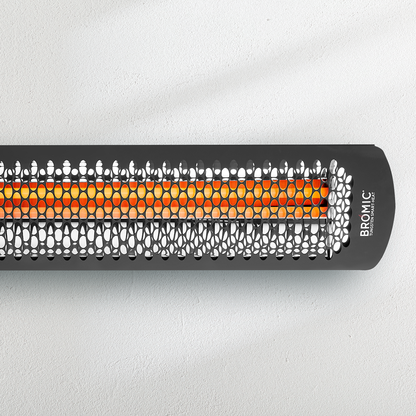

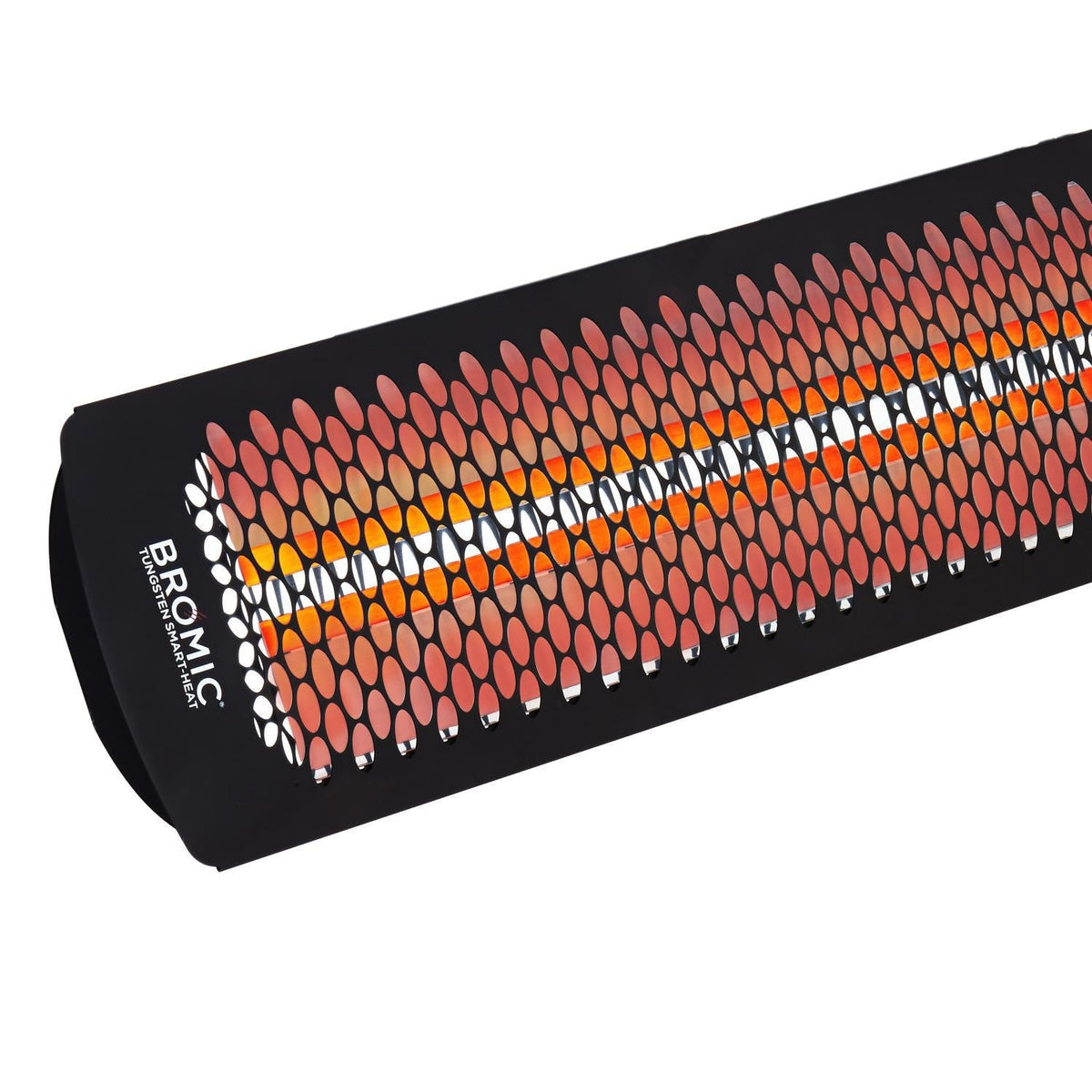

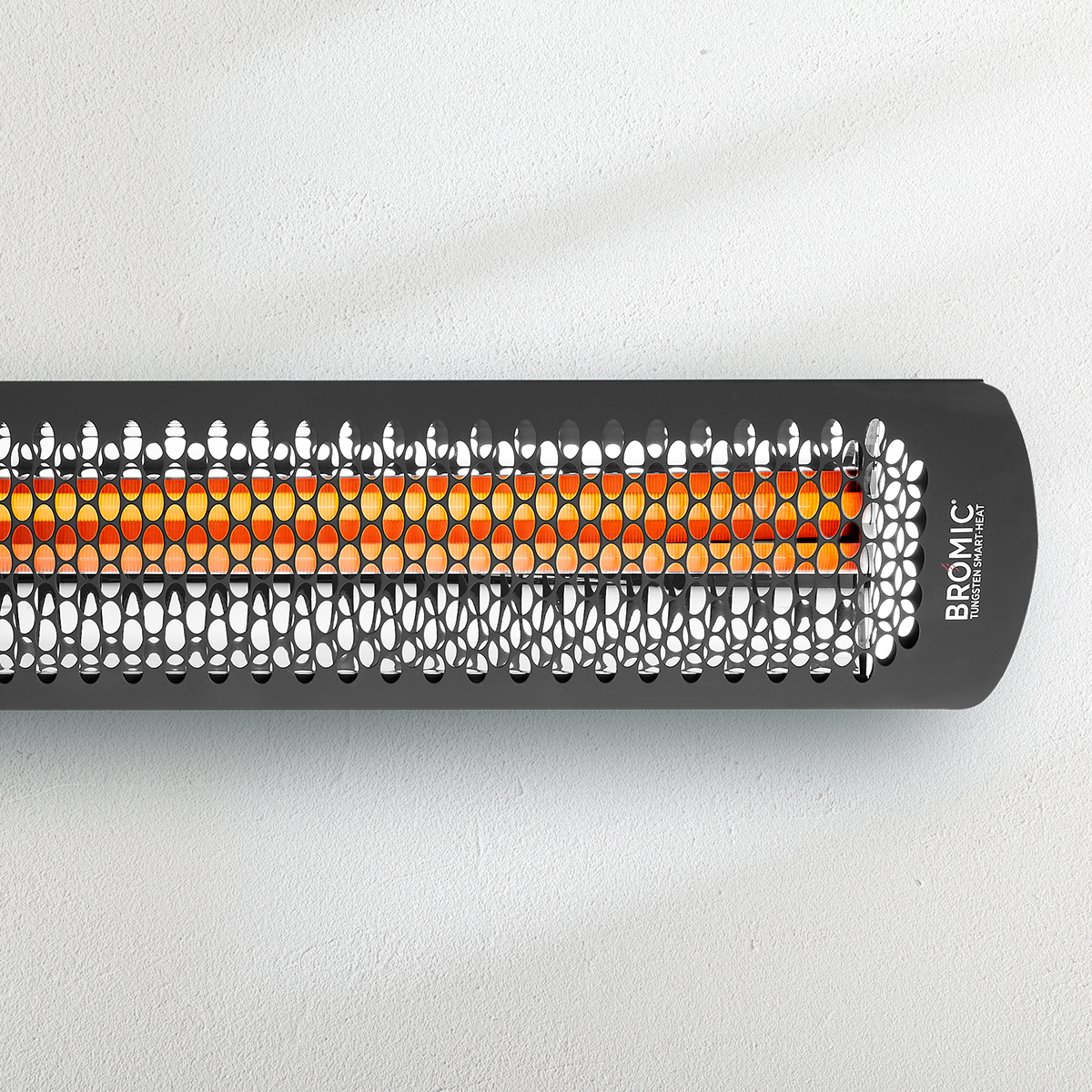

Thick steel coils housed in translucent fused quartz deliver durable, high-output heat, while the mirror-finish Parabolic Specular Reflector directs infrared energy back toward the target area. The honeycomb fascia distributes heat precisely, frosted quartz elements reduce glare, and Bromic's patented technology gives superior wind resistance.
Thick steel coils housed in translucent fused quartz deliver durable, high-output heat, while the mirror-finish Parabolic Specular Reflector directs infrared energy back toward the target area. The honeycomb fascia distributes heat precisely, frosted quartz elements reduce glare, and Bromic's patented technology gives superior wind resistance.
Installation

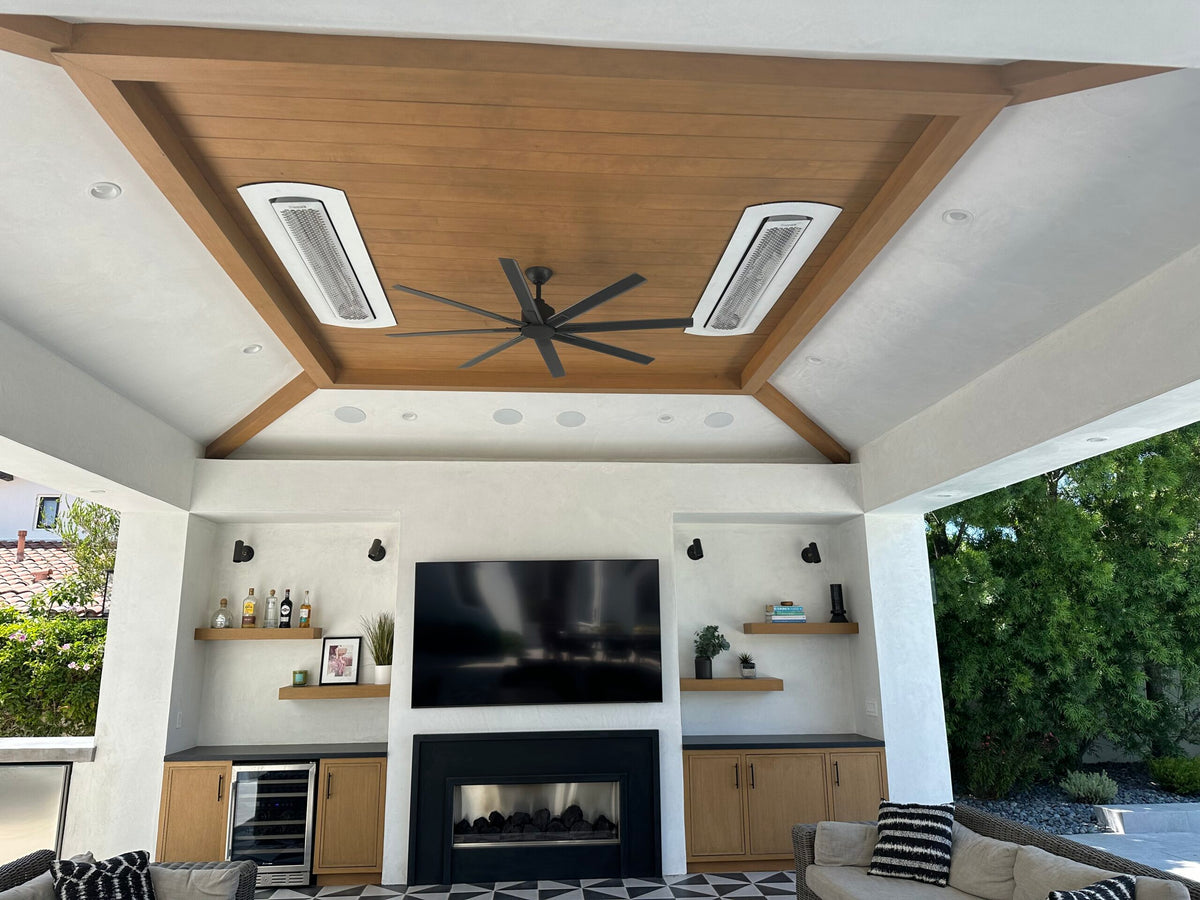

The heater ships with a mounting bracket for wall or ceiling installation, and the bracket adjusts so you can aim heat where it is needed. For other looks, add a Bromic Tungsten Electric Tube Suspension Kit or a Ceiling Recess Kit for a flush finish. Minimum floor clearance is 72 inches for wall mounting (96 inches in Canada) and 96 inches for ceiling mounting. The heater is IPX4 rated and is best installed under cover. It must be hardwired by a licensed electrician.
The heater ships with a mounting bracket for wall or ceiling installation, and the bracket adjusts so you can aim heat where it is needed. For other looks, add a Bromic Tungsten Electric Tube Suspension Kit or a Ceiling Recess Kit for a flush finish. Minimum floor clearance is 72 inches for wall mounting (96 inches in Canada) and 96 inches for ceiling mounting. The heater is IPX4 rated and is best installed under cover. It must be hardwired by a licensed electrician.
Controls
Controls are sold separately. Choose a Bromic Affinity Smart-Heat On/Off or Dimmer Controller for app control and 0 to 100% dimming, or a Manual Wall Switch for simple on/off operation.
Controls are sold separately. Choose a Bromic Affinity Smart-Heat On/Off or Dimmer Controller for app control and 0 to 100% dimming, or a Manual Wall Switch for simple on/off operation.
Features
- 6,000W of radiant heat for areas up to 160 square feet
- Two quartz heating elements with independent control
- Parabolic Specular Reflector and honeycomb fascia for precise heat distribution
- Frosted elements reduce glare
- Stainless steel construction with high-temperature, corrosion-resistant coating
- Adjustable mounting bracket included for wall or ceiling installation
- Optional tube suspension and ceiling recess kits
- Compatible with Affinity On/Off, Affinity Dimmer and Manual Wall Switch controls (sold separately)
- Black or white; 208V, 240V or 277V
Specifications
Manufacturer Bromic Heating
Model Numbers (Black) 208V: BH0420035-2
240V: BH0420033-2
277V: BH0420043-2
240V: BH0420033-2
277V: BH0420043-2
Model Numbers (White) 208V: BH0420036-2
240V: BH0420013-2
277V: BH0420045-2
240V: BH0420013-2
277V: BH0420045-2
Series Tungsten Smart-Heat Electric
Watts 6,000 (approx. 20,472 BTU)
Heating Elements Dual Element, Independently Controlled

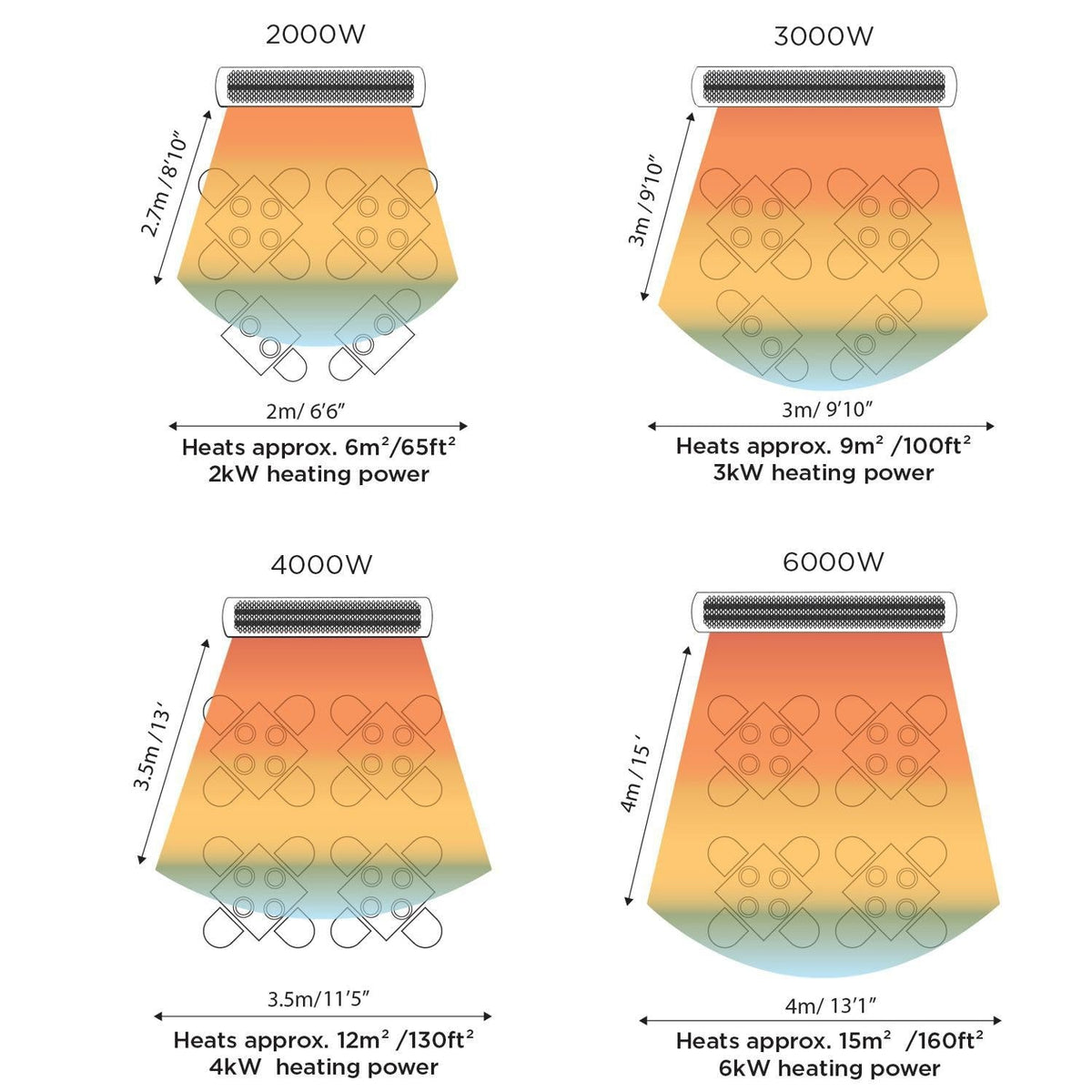

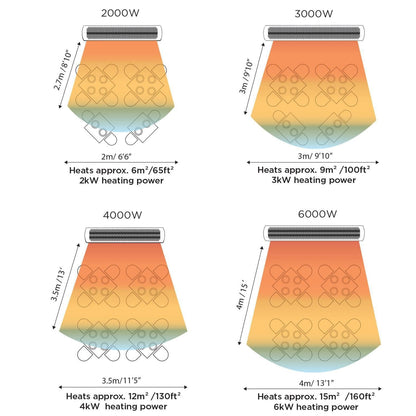

Heat Area 160 Sq. Ft.
Rated Current 25A (240V) / 28.85A (208V) / 21.7A (277V)
Minimum Floor Clearance Wall 72" (96" in Canada) / Ceiling 96"
Ingress Rating IPX4
Style Wall / Ceiling Mount
Included Mounting Bracket
Construction Stainless Steel, High-Temperature Coating
Finish Black / White
Installation Hardwired, Licensed Electrician
Control Options Affinity On/Off / Affinity Dimmer / Manual Wall Switch (sold separately)
Certification Intertek ETL / cETL 4005951
Warranty 2 Years Heater / 7 Years Heating Elements

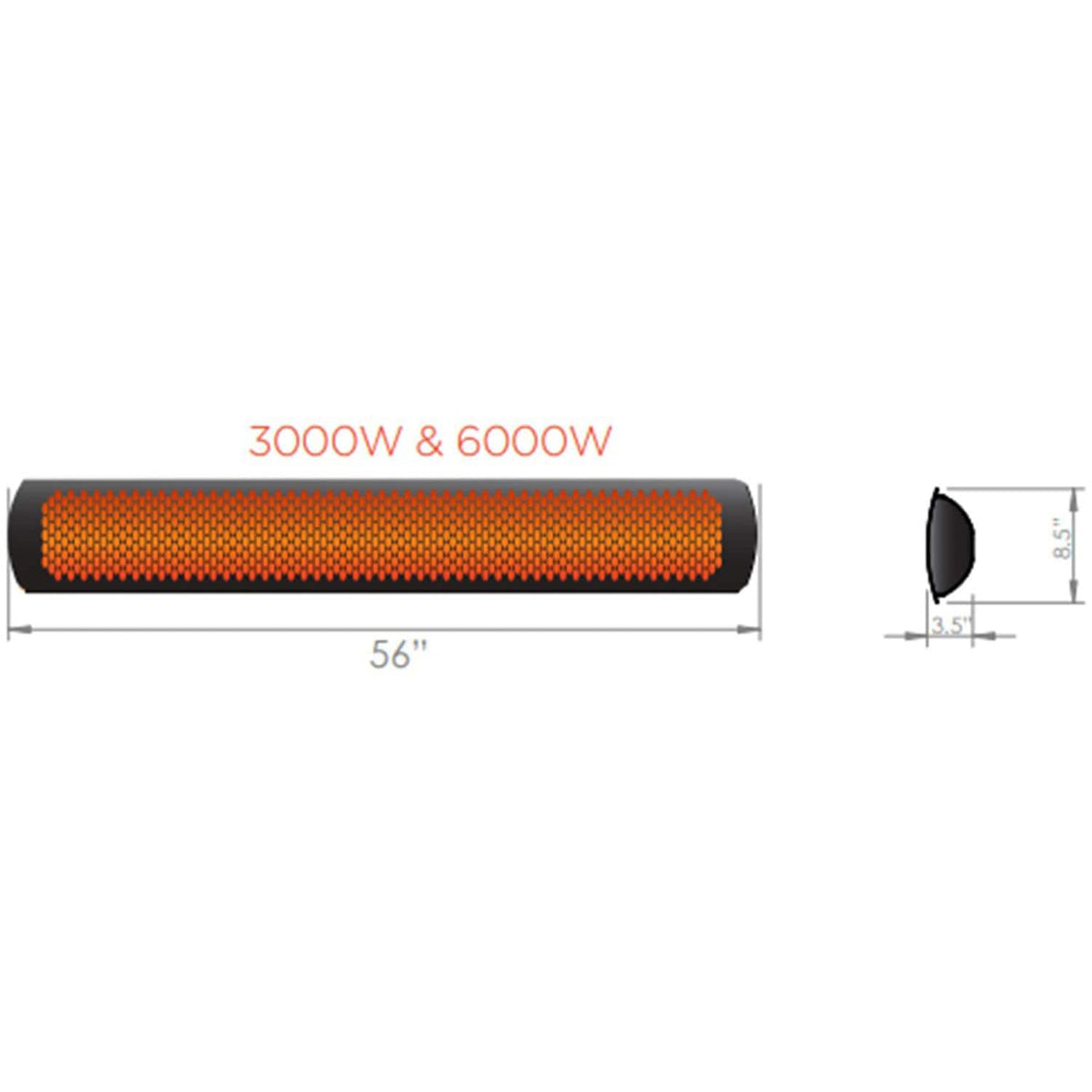

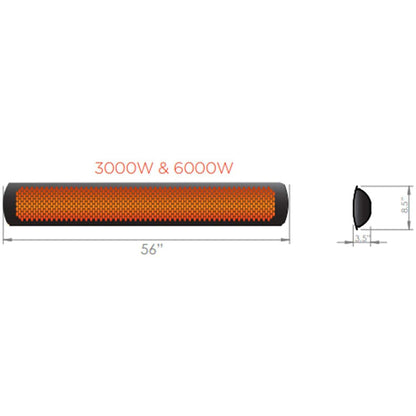

Dimensions
Width 56"
Height 3.5"
Depth 8.5"
Weight 22 lbs
