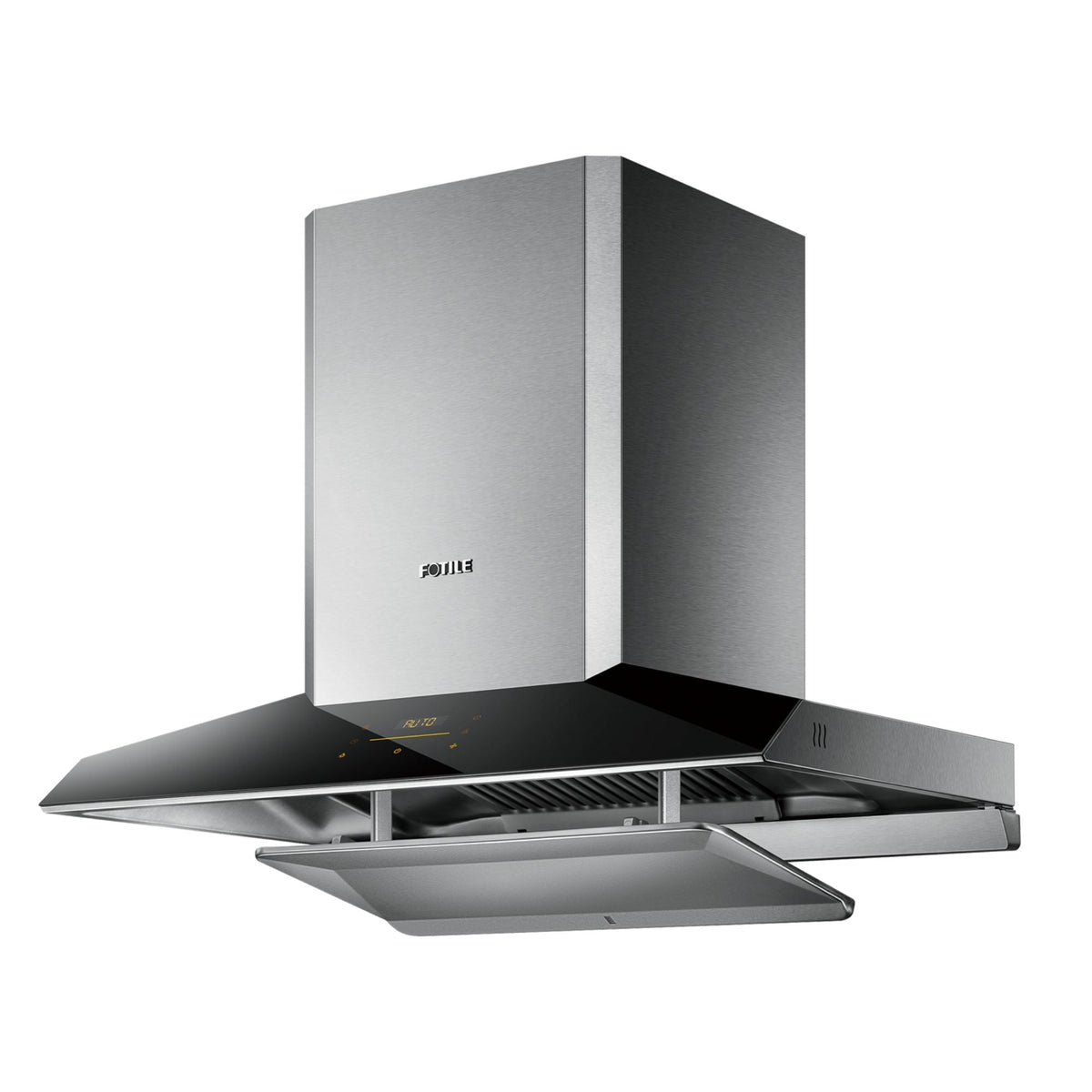

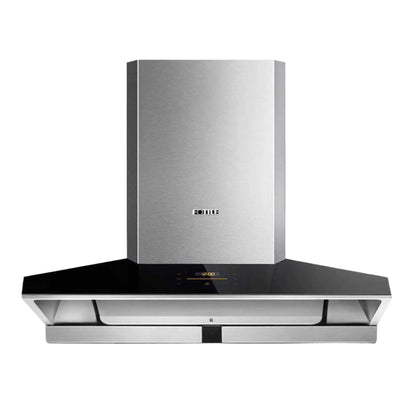

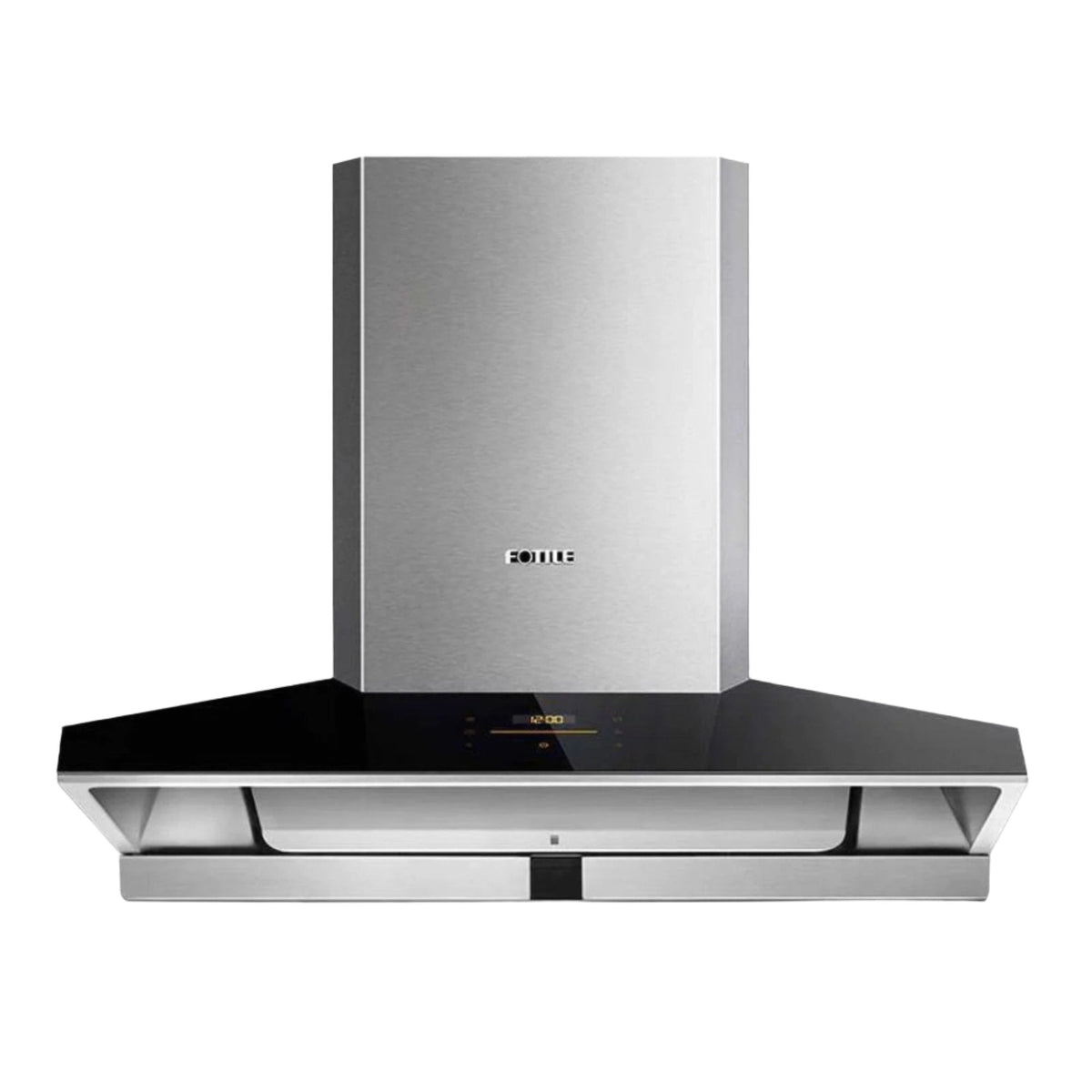

FOTILE 36" Wall-Mount Perimeter Vent Range Hood | EMG9030

Create a cleaner and more comfortable cooking environment with the FOTILE EMG9030 36-Inch Wall-Mount Perimeter Vent Range Hood. Designed for spacious kitchens and larger cooktops, it combines powerful ventilation, intelligent smoke detection, and a modern blend of stainless steel and black tempered glass.

Powerful, Intelligent Ventilation

• Up to 1,100 Max Equivalent CFM

• HVI-certified airflow up to 660 CFM

• Powerful and efficient DC motor

• Three speed settings plus automatic mode

• Intelligent Air Management automatically detects cooking fumes and adjusts ventilation

• Turbo Mode provides additional extraction during high-heat cooking

Automatic Capture-Shield Technology

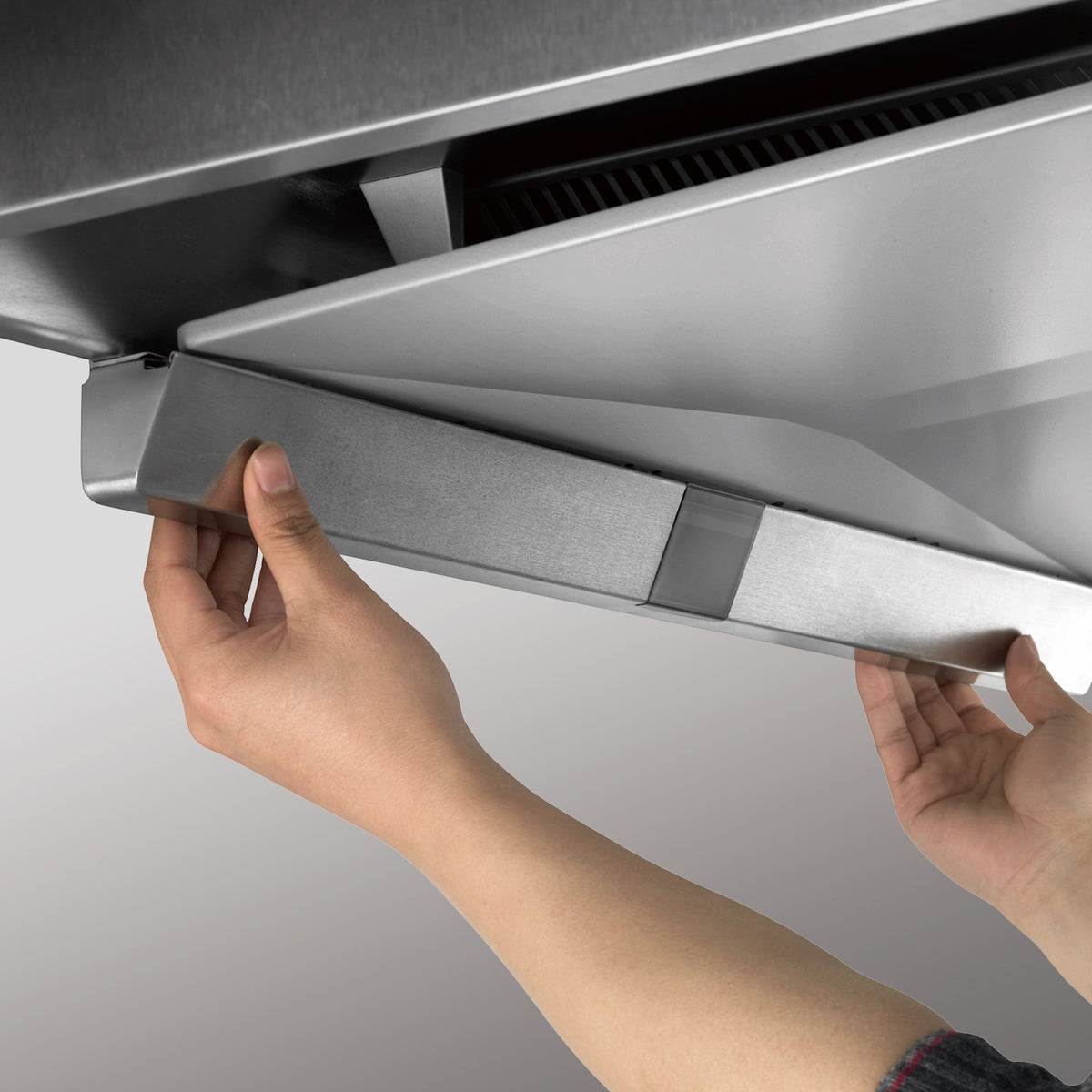

The automatic Capture Shield lowers closer to the cooking surface as needed, helping contain smoke, grease, and odors before they spread throughout the kitchen. Its perimeter-vent design directs cooking fumes toward the extraction area for more efficient removal.

Quiet Operation

The EMG9030 delivers powerful ventilation while maintaining noise levels between approximately 40.5 and 56.5 dB, depending on the selected speed.

Convenient Controls and Maintenance

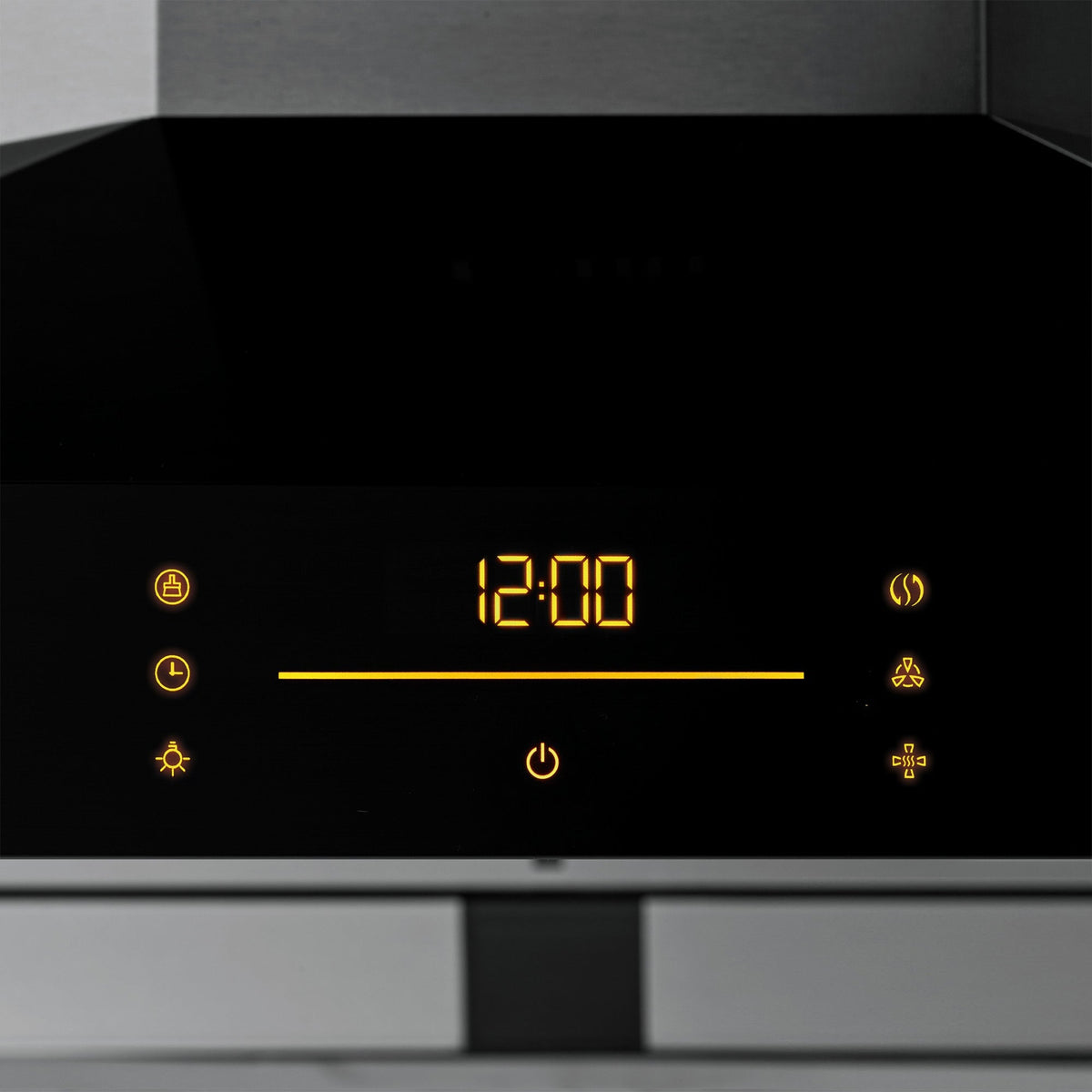

• Responsive touch controls

• Adjustable two-, five-, or ten-minute delay shutoff

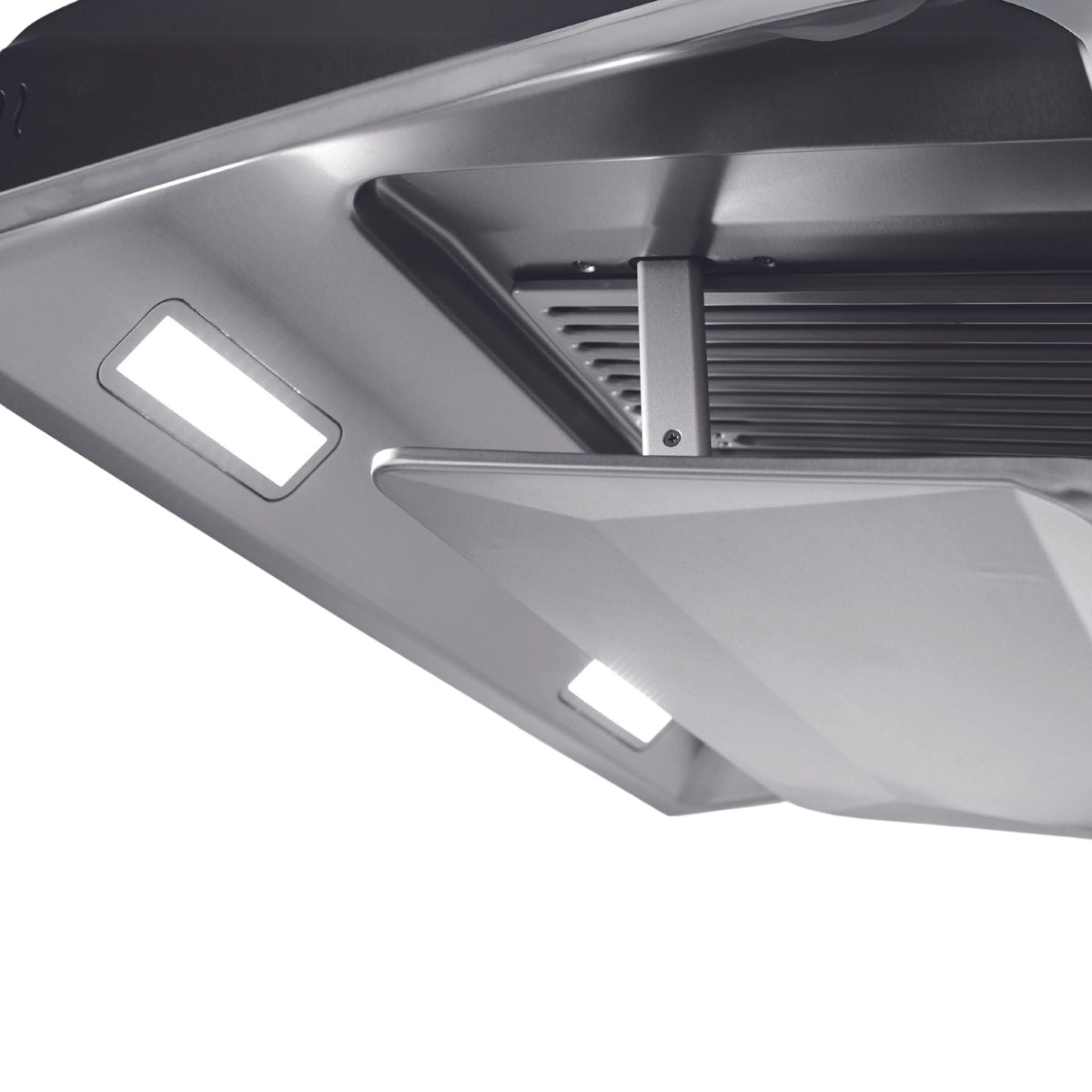

• Two LED lights illuminate the cooking surface

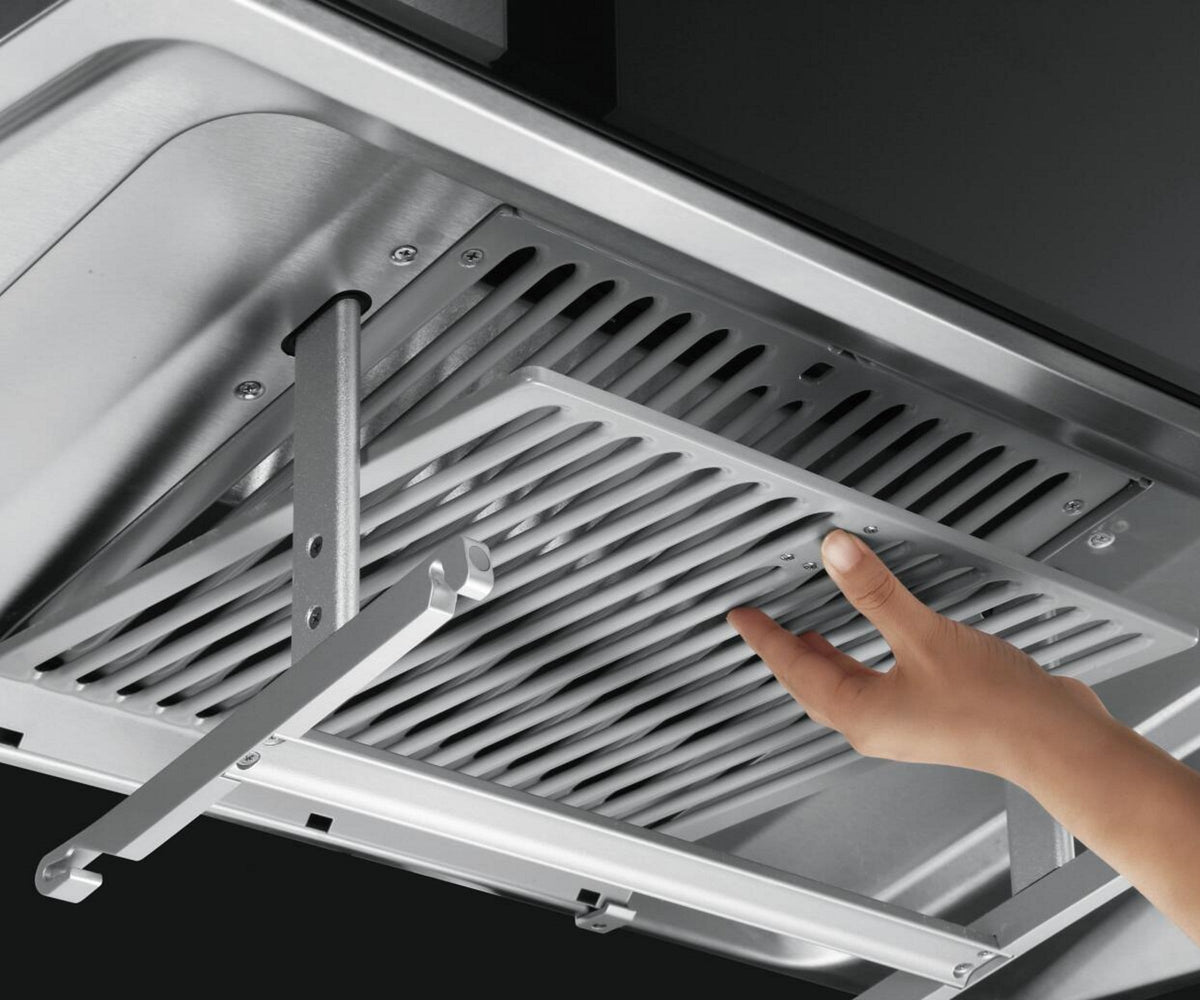

• Removable, dishwasher-safe oil filter

• Oversized oil-collection cup

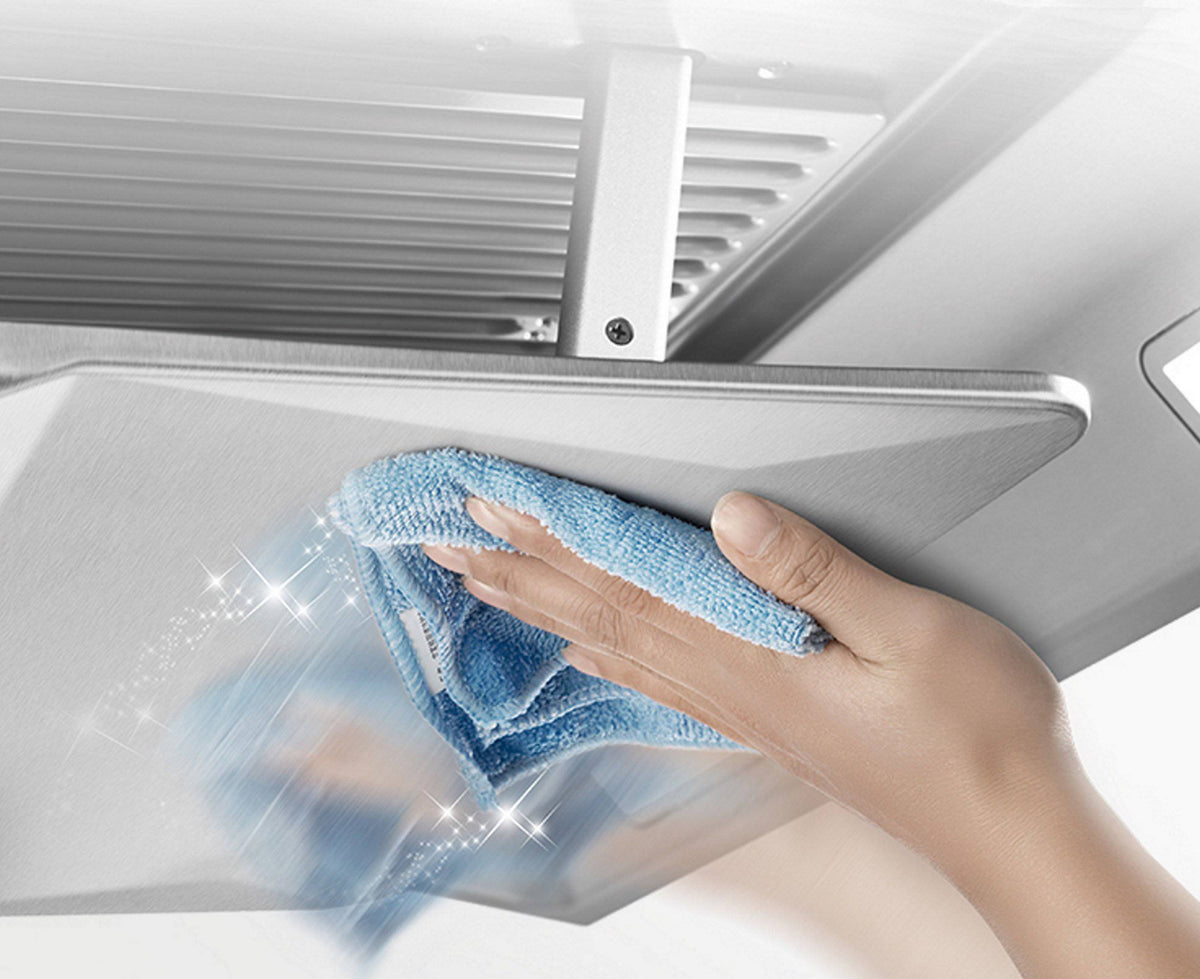

• Easy-Touch Cleaning Mode simplifies routine maintenance

• Adjustable decorative chimney cover included

Filtration Performance

• 92% grease-separation rate

• 98% odor-elimination rate

• Coverage suitable for cooking surfaces up to approximately 7.2 square feet

Product Specifications

• Brand: FOTILE

• Model: EMG9030

• Product Type: Wall-mount ducted range hood

• Finish: Stainless steel and black tempered glass

• Width: 36 inches

• Maximum Equivalent Airflow: 1,100 CFM

• HVI Airflow: 280 / 420 / 520 / 660 CFM

• Speed Settings: 3 plus Auto

• Noise Level: 40.5–56.5 dB

• Motor: DC motor

• Motor Power: 262W

• Controls: Touch

• Lighting: Two 2W LED lights

• Delay Shutoff: 2, 5, or 10 minutes

• Duct Size: 6-inch round

• Duct Direction: Vertical, top vented

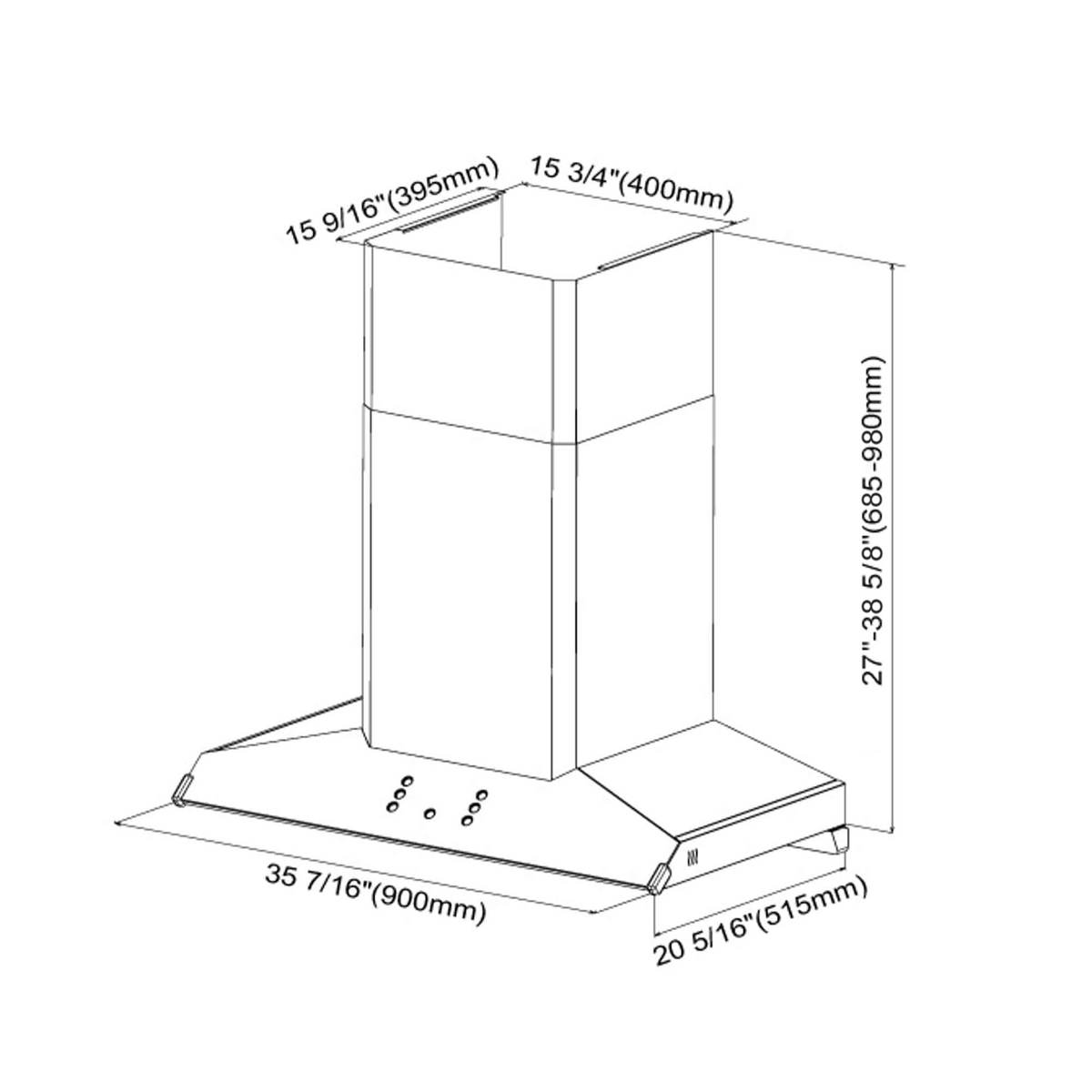

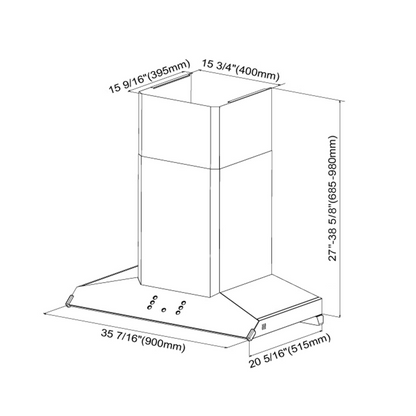

• Product Dimensions: 35 7/16" W × 20 5/16" D × 27"–38 5/8" H

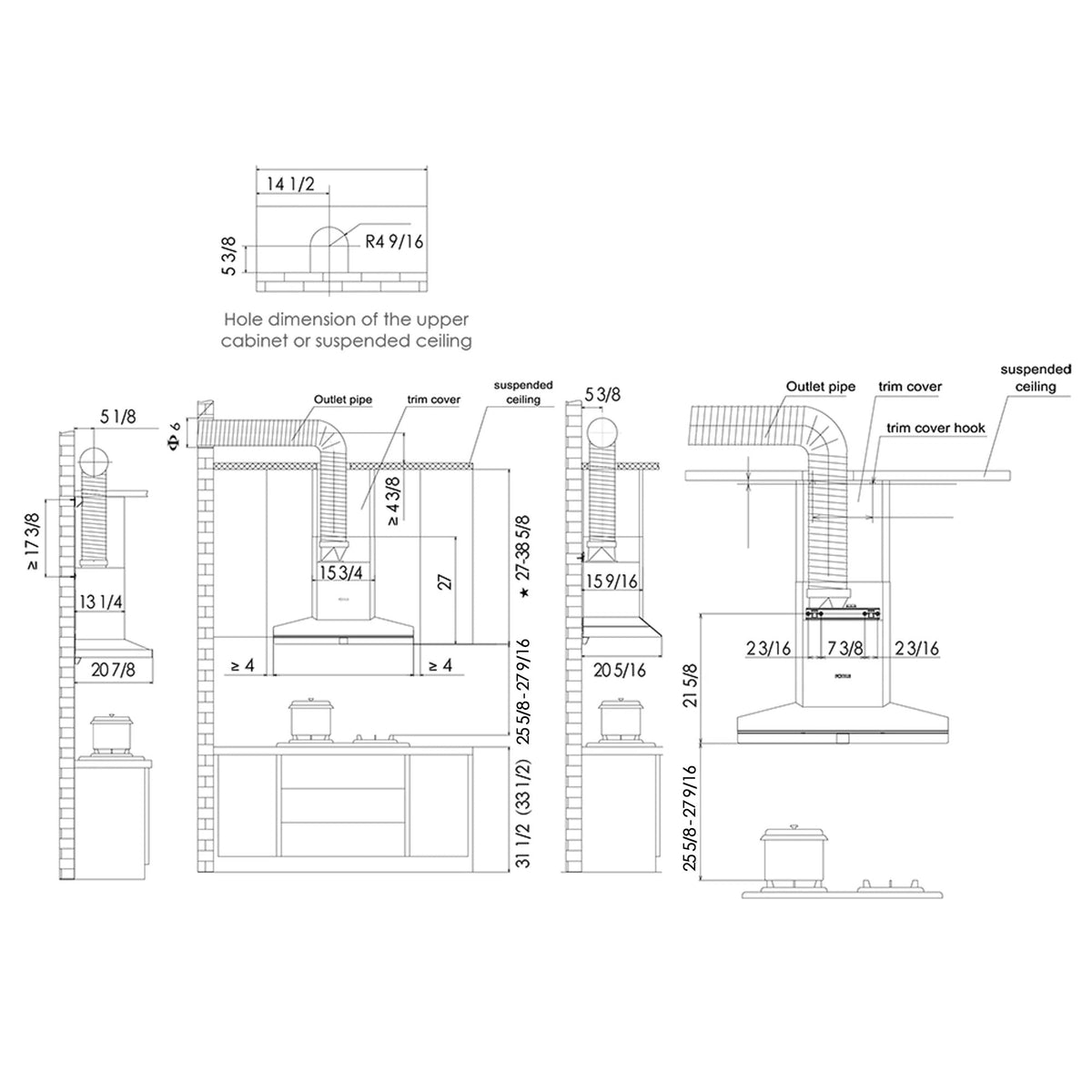

• Recommended Mounting Height: 25 5/8"–27 9/16" above the cooktop

• Power Supply: 120V / 60Hz

• Net Weight: 76 lb

• Certifications: ETL, HVI and CEC

• Warranty: Two years on labor, five years on parts, and limited lifetime coverage on the motor

What’s Included

• Wall-mount range hood

• Automatic Capture Shield

• Decorative chimney cover

• Decorative-cover bracket

• Unit bracket

• Six-inch duct kit

• Oversized oil cup

Professional installation is recommended. Confirm the mounting height, ceiling clearance, and exterior ducting requirements before installation.
